Part 1: Introduction to Android Security: Architecture, Sandbox, IPC, and System Protections

Before diving into Android exploitation, reverse engineering, or fuzzing, it’s important to understand one thing clearly:

Android is not easy to break by design.

It is built as a layered, security-first operating system where multiple mechanisms work together to isolate applications, control access, and protect the system from compromise.

In this post, we’ll walk through the core fundamentals of Android security—covering architecture, sandboxing, permissions, IPC, SELinux, and Verified Boot. These concepts form the foundation for anyone interested in Android security research or exploitation.

1. Android Architecture: The Foundation of Security

Android follows a layered architecture, where each layer depends on the one below it. This design is not just for modularity—it’s a key part of its security model.

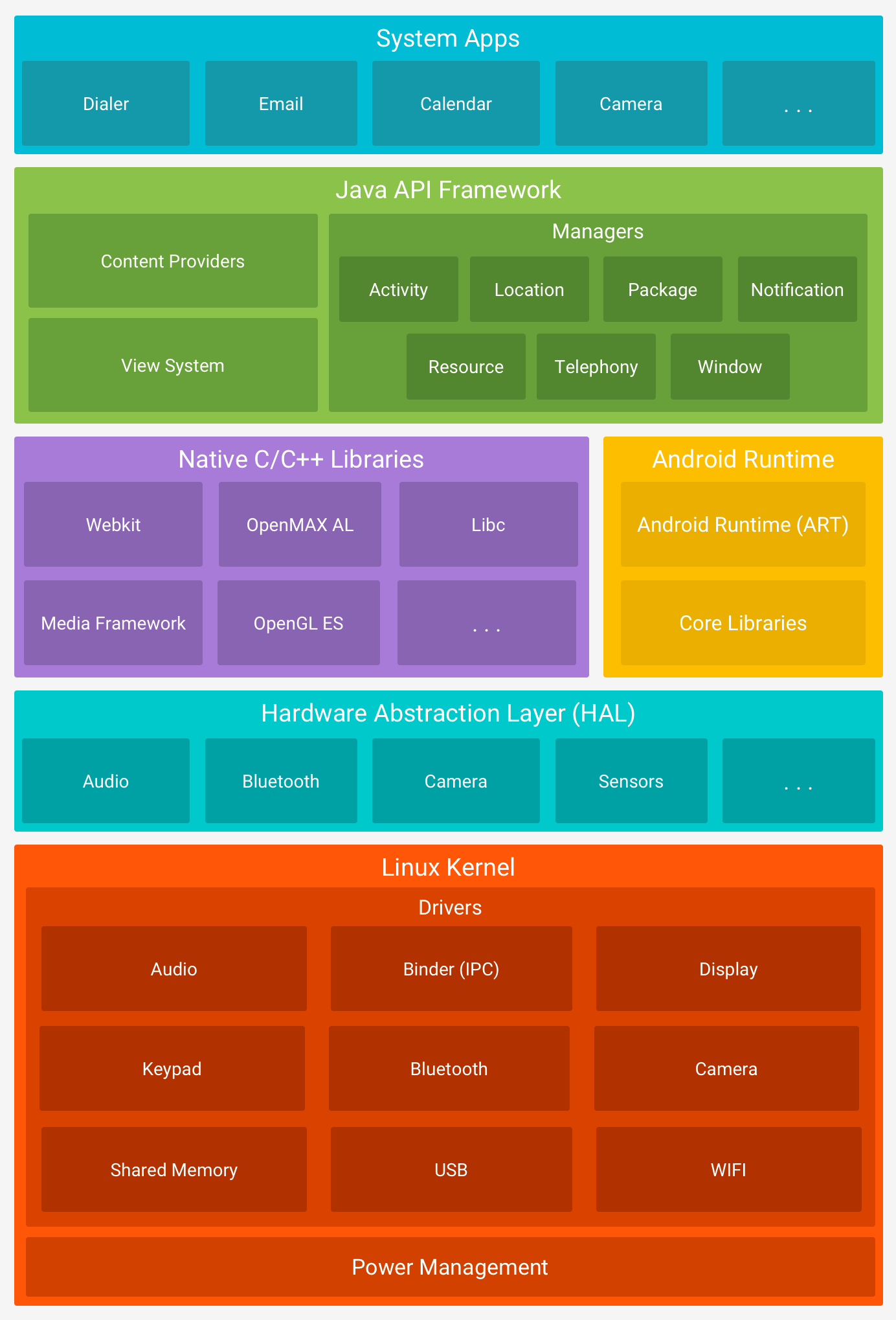

Android Architecture

Key Layers of Android

  • Linux Kernel
    The core of Android. Handles:

    • Process management
    • Memory management
    • Hardware drivers
    • Security enforcement

  • Native Userspace
    Contains low-level system components and native libraries.

  • Android Runtime (ART) / Dalvik VM
    Executes Android applications in a managed environment.

  • Java Runtime Libraries
    Provides standard APIs for application development.

  • System Services
    Core services like Activity Manager, Package Manager, etc.

  • IPC Mechanisms
    Enables communication between isolated processes.

  • Android Framework
    High-level APIs developers interact with.

  • Applications
    Both system apps and user-installed apps.

Why This Matters

This layered structure ensures:

  • Strong isolation between components
  • Reduced attack surface
  • Controlled access to critical resources

2. Android Security Model: Layered Defense

Android security is not based on a single feature—it’s a combination of multiple mechanisms working together.

Core Security Pillars

  • Application Sandbox
  • Permissions
  • Inter-Process Communication (IPC)
  • Code Signing
  • SELinux

Among these, the Application Sandbox is the most critical.

3. Application Sandbox: The Core Isolation Mechanism

At the heart of Android security lies the Application Sandbox.

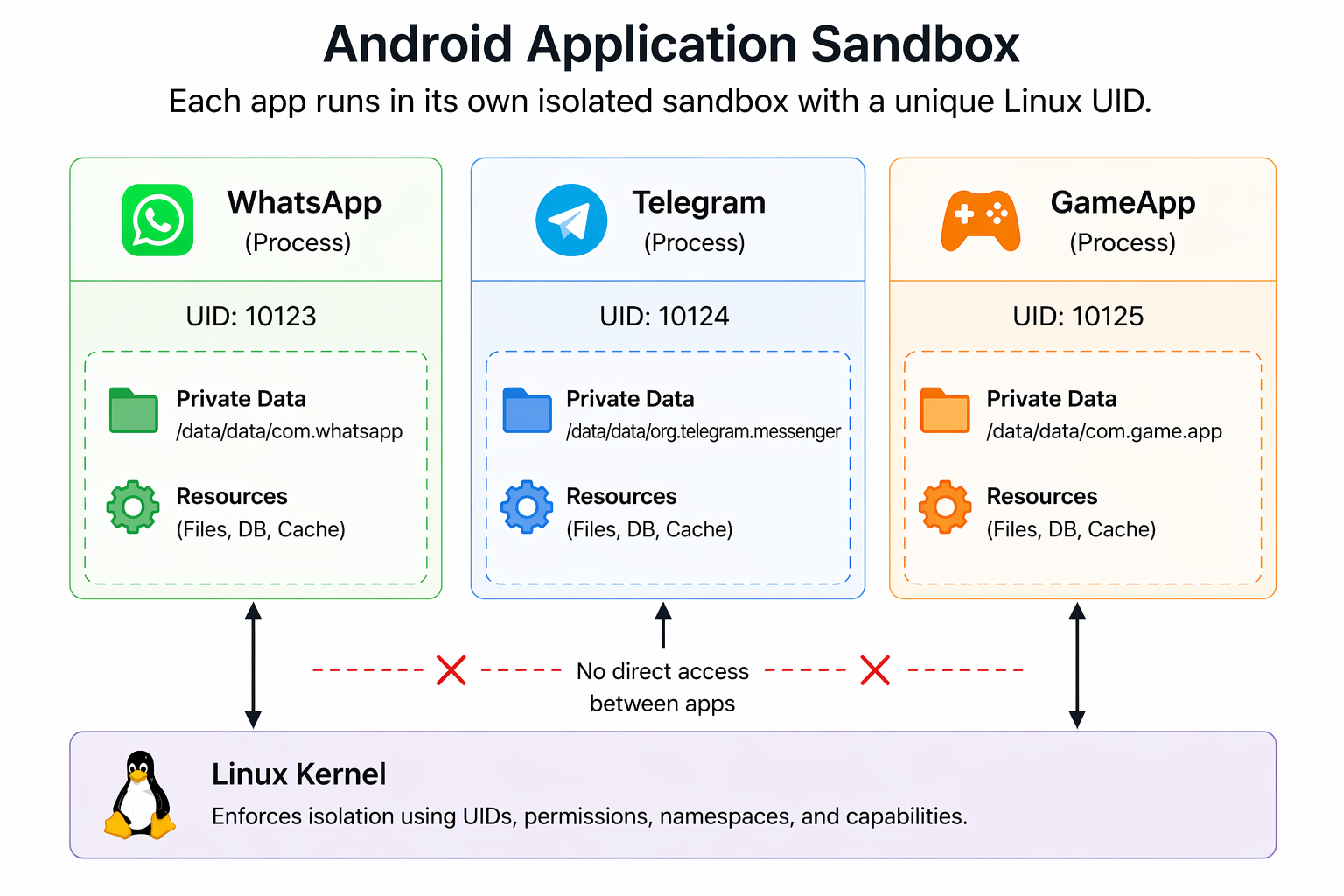

Android app sandbox diagram showing apps isolated by unique Linux UIDs with no direct access between them.

How the Sandbox Works

When an app is installed:

  • It gets a unique Linux UID (User ID)
  • It runs in its own separate process
  • Its data is stored in:
1
/data/data/<package-name>

This means:

  • Apps cannot access each other’s files
  • Apps cannot interfere with each other directly

Security Protections Inside the Sandbox

  • File Isolation
    Each app has private storage enforced by Linux permissions

  • W^X (Write XOR Execute)

    • Code → Read + Execute
    • Data → Read + Write
      Prevents code injection attacks

  • Seccomp-bpf
    Restricts which system calls an app can make

  • SELinux Policies
    Adds an additional layer of enforcement

4. Sandbox Escape: Where Attacks Actually Happen

The sandbox itself is strong. Attackers don’t break it directly—they bypass it by targeting lower layers.

Common Escape Paths

  • Kernel vulnerabilities
  • System services
  • Binder IPC flaws
  • Hardware drivers (GPU, Wi-Fi, etc.)

These are the real targets in advanced Android exploitation.

5. Android Permissions: Controlled Access

Even though Android apps are isolated using sandboxing, they still need access to certain system features like the camera, storage, or network. This is handled through the Android permission system.

Permissions help protect:

  • User data (contacts, location, files)
  • Sensitive actions (camera, microphone, Bluetooth)

How Permissions Work

  • Apps declare required permissions in the AndroidManifest.xml

  • Depending on the type, permissions are either:

    • Granted automatically (install-time)
    • Requested from the user at runtime (dangerous permissions)

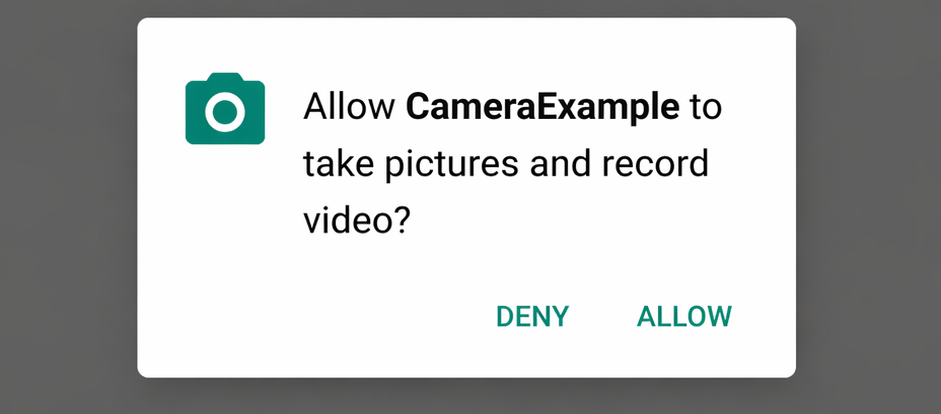

For example, accessing the camera requires user approval while the app is running.

Behind the Scenes

Android doesn’t just manage permissions at the application level—it enforces them using the Linux kernel.

Internally, Android maps high-level app permissions to Linux Group IDs (GIDs). This mapping is defined in a system file:

1
/system/etc/permissions/platform.xml

Example

1
2
3
<permission name="android.permission.BLUETOOTH_ADMIN">
    <group gid="net_bt_admin" />
</permission>

What Happens Internally

  • When an app is granted android.permission.BLUETOOTH_ADMIN
  • The system assigns the app to the net_bt_admin Linux group
  • The Linux kernel enforces access control based on this group

Workflow for using permissions

High-level workflow for using permissions on Android

The permission workflow in Android is straightforward: an app first checks if it needs access, declares the required permission, and if it involves sensitive data, the system prompts the user at runtime. The user can then allow or deny the request, and based on this decision, the app either gains access or is restricted. This ensures users stay in control of their data while the system enforces security in the background.

6. Binder IPC: Communication Between Apps

Android applications run in isolated sandboxes, which means they cannot directly communicate with each other. To enable secure communication between apps and system services, Android uses Binder IPC (Inter-Process Communication).

How Binder IPC Works

When an app wants to interact with another app or a system service, it doesn’t communicate directly. Instead:

  • The app sends a request (called a parcel)
  • The request is passed through the Binder driver (/dev/binder)
  • The Linux kernel verifies the sender’s identity and permissions
  • The request is delivered to the target service

Key Components

  • Binder Driver – Kernel-level component handling communication
  • Binder Client – The app making the request
  • Binder Service – The app/service receiving the request
  • Transactions – Structured messages exchanged between processes

Why Binder is Important

  • Ensures secure and structured communication
  • Prevents direct memory sharing between apps
  • Allows the kernel to enforce UID-based security checks

Security Perspective

Binder is one of the most critical parts of Android’s architecture. Since most interactions with system services go through Binder, it becomes a major attack surface for vulnerabilities in Android.

7. SELinux: Mandatory Access Control

Android strengthens its security model using SELinux (Security-Enhanced Linux), a powerful mechanism that enforces strict access control policies at the kernel level.

What is SELinux?

SELinux is a Mandatory Access Control (MAC) system originally developed by the NSA. Unlike traditional permission systems, where access is based on user identity, SELinux defines what each process can and cannot do, regardless of user permissions.

It follows a simple rule:

Anything not explicitly allowed is denied.

Modes

SELinux operates on the principle of default denial: Anything not explicitly allowed is denied. SELinux can operate in two global modes:

  • Permissive Mode,
    in which permission denials are logged but not enforced.

  • Enforcing Mode (Default in Android)
    in which permissions denials are both logged and enforced.

App Domains

Each app runs in a restricted domain such as:

  • untrusted_app
  • system_app
  • priv_app
  • isolated_app
  • and more...

Why It Matters

Even if an attacker gains code execution:

  • SELinux limits what that code can do

8. Verified Boot: Trust Starts at Startup

Verified Boot strives to ensure all executed code comes from a trusted source (usually device OEMs), rather than from an attacker or corruption. It establishes a full chain of trust, starting from a hardware-protected root of trust to the bootloader, to the boot partition and other verified partitions including system, vendor, and optionally oem partitions. During device boot up, each stage verifies the integrity and authenticity of the next stage before handing over execution.

How It Works

  • When the device starts, the bootloader verifies the integrity of the system
  • Each stage of the boot process verifies the next (chain of trust)
  • Android uses DM-Verity to check system partitions for tampering

Final Thoughts

Android security is built as a multi-layered defense system:

  • Kernel-level isolation (UID-based sandbox)
  • Permission enforcement via Linux groups
  • Binder-controlled communication
  • SELinux mandatory policies
  • Verified Boot integrity checks

To compromise an Android device, an attacker must bypass multiple independent layers, not just one.
